Pascal’s Law – Definition, Formula and Explanation

Have you ever wondered how a small push on your car brake pedal brings a heavy vehicle to a stop? Or how a hydraulic lift in a mechanic’s garage raises a whole car with minimal effort? The answer lies in a beautiful piece of physics called Pascal’s Law.

What is Pascal’s Law?

Pascal’s Law, also called Pascal’s Principle, states that:

“When pressure is applied to a confined fluid, the pressure is transmitted undiminished in all directions throughout the fluid.”

This means that if you apply pressure at one point in a fluid that is enclosed (like in a tube or container), that pressure gets spread out equally in every direction, affecting every part of the fluid and the walls of its container.

Conceptual Understanding

Think of a balloon filled with water. If you squeeze it at one end, the pressure travels through the water and may cause the other end to bulge out or even burst. That’s Pascal’s Law in action!

Pascal’s Law forms the foundation of hydraulic systems, which are used in car brakes, construction machines, elevators, and even dentist chairs!

Pascal’s Law Formula

The basic formula used in Pascal’s Law is:

$ \displaystyle P = \frac{F}{A}$

Where:

• P = Pressure (in pascals, Pa)
• F = Force applied (in newtons, N)
• A = Area (in square meters, m²)

In a hydraulic system, Pascal’s Law is applied like this:

$ \displaystyle \frac{F_1}{A_1} = \frac{F_2}{A_2}$

This equation helps us calculate how a small force applied to a small piston can generate a larger force on a larger piston, without losing any pressure.

SI Unit and Dimensional Formula

• SI Unit of Pressure: Pascal (Pa) = N/m²
• Dimensional Formula: $ \displaystyle [ML^{-1}T^{-2}]$

This is the same as pressure, since Pascal’s Law deals with pressure transfer in fluids.

Key Features of Pascal’s Law

• Applies only to incompressible fluids (like liquids)
• The fluid must be confined in a closed system
• Pressure is transmitted equally in all directions
• There is no loss of pressure due to transmission

Derivation of Pascal’s Law

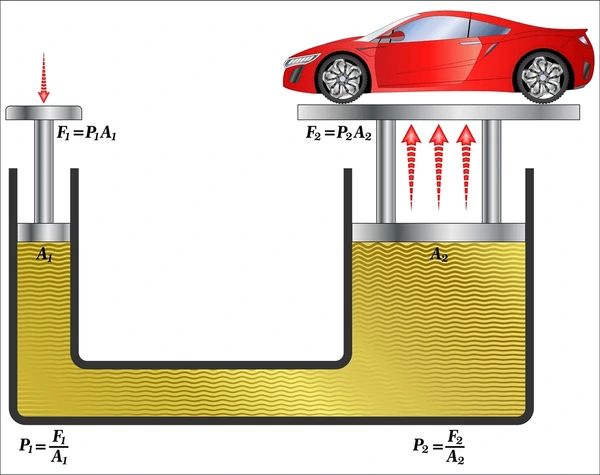

Let’s take a closed container filled with liquid and fitted with pistons of different areas at both ends.

If you apply force $ \displaystyle F_1$ on piston of area $ \displaystyle A_1$, pressure is:

$ \displaystyle P_1 = \frac{F_1}{A_1}$

According to Pascal’s Law, this pressure gets transmitted equally through the fluid:

$ \displaystyle P_2 = P_1 = \frac{F_2}{A_2}$

Thus,

$ \displaystyle \frac{F_1}{A_1} = \frac{F_2}{A_2}$

This equation is the key behind mechanical advantage in hydraulic machines.

Applications of Pascal’s Law

1. Hydraulic Lift

Used in garages to lift cars for repair. A small force on a narrow piston lifts a heavy car on a broader piston.

2. Hydraulic Brakes

When you press your car brake pedal, it transmits pressure through brake fluid to stop the wheels.

3. Hydraulic Press

Used in factories to press materials (metal sheets, plastic molds, etc.)

4. Hydraulic Jacks

Used to lift vehicles during repairs or tire changes.

5. Dentist Chair and Barber Chairs

These use hydraulic systems to adjust height with little effort.

Real-Life Examples of Pascal’s Law

• Toothpaste Tube: Squeezing one end pushes the paste out from the nozzle — pressure travels through the paste.
• Balloon Filled with Water: Apply pressure on one side, and water gushes out from a hole elsewhere.
• Fire Extinguishers: Pressing the handle applies pressure on the fluid, which forces it out rapidly through the nozzle.

Example Problem Based on Pascal’s Law

Problem:
A hydraulic press has a small piston of area 0.01 m² and a large piston of area 0.5 m². If a force of 100 N is applied on the smaller piston, find the force exerted by the larger piston.

Solution:
Using the formula:

$ \displaystyle \frac{F_1}{A_1} = \frac{F_2}{A_2}$

$ \displaystyle\frac{100}{0.01} = \frac{F_2}{0.5}$

$ \displaystyle F_2 = \frac{100}{0.01} \times 0.5 = 10,000 \times 0.5 = 5000\ \text{N}$

Answer: The larger piston exerts a force of 5000 N.

Conditions for Pascal’s Law to Hold True

For Pascal’s Law to work perfectly:

• The fluid must be incompressible
• The system should be leak-proof
• There should be no friction losses in transmission
• The system should be closed and fully filled

Pascal’s Law vs. Archimedes’ Principle

Importance of Pascal’s Law in Physics

Pascal’s Law is a practical tool to explain how forces are transmitted through fluids. It helps us design machines that amplify small efforts into large results. It’s not just a theory — it’s at the heart of modern mechanical, civil, and automotive engineering.

From the brakes in your car to the machines in a construction site, Pascal’s Law is working silently behind the scenes.

Frequently Asked Questions

Q1: Who discovered Pascal’s Law?
Blaise Pascal, a French mathematician and physicist, discovered this law in the 17th century.

Q2: Can it be applied to gases?
It applies better to incompressible fluids like liquids, but with certain limitations, it can also apply to gases in closed systems.

Q3: Why is Pascal’s Law important?
It allows the creation of hydraulic systems that make work easier by transferring force efficiently.

Q4: What is the unit of pressure?
The SI unit of pressure is the Pascal (Pa), which equals 1 N/m².
